Overview

Capivara provides spectral segmentation tools for Integral Field Unit (IFU) data cubes. Version 0.3.0 adds built-in missing-data support in the exact workflow, sparse-Ward segmentation for large cubes, Sagui-style white-light starlet masking, variance-aware spectral summaries, and SNR-guided component selection.

The core segmentation API is intentionally small:

segment() for the standard exact Ward workflow, including missing spectral channels.
segment_large() for large cubes where exact pairwise distances are too expensive in RAM.

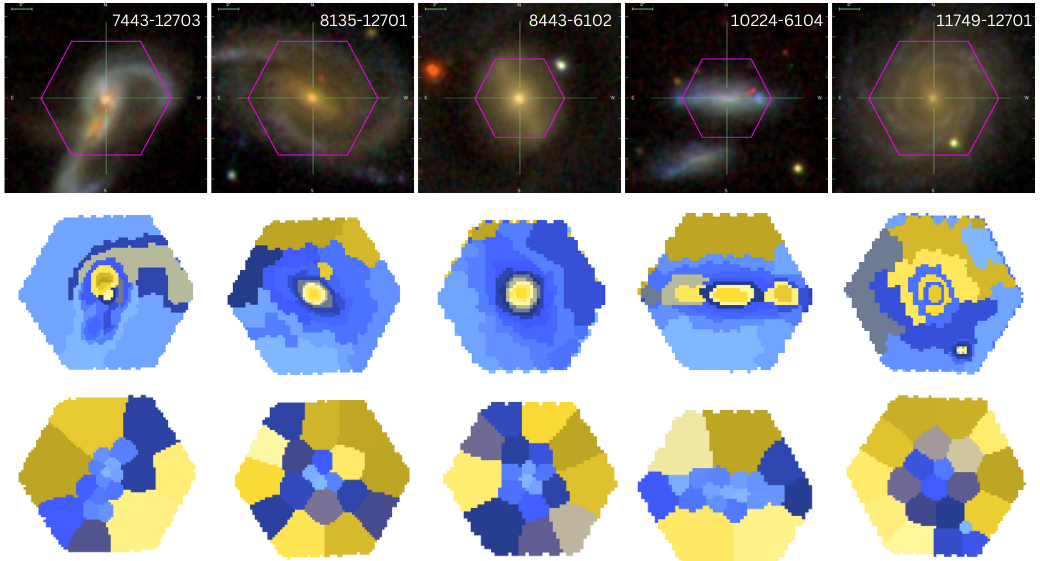

Current Capivara Mosaic

Current Capivara mosaic

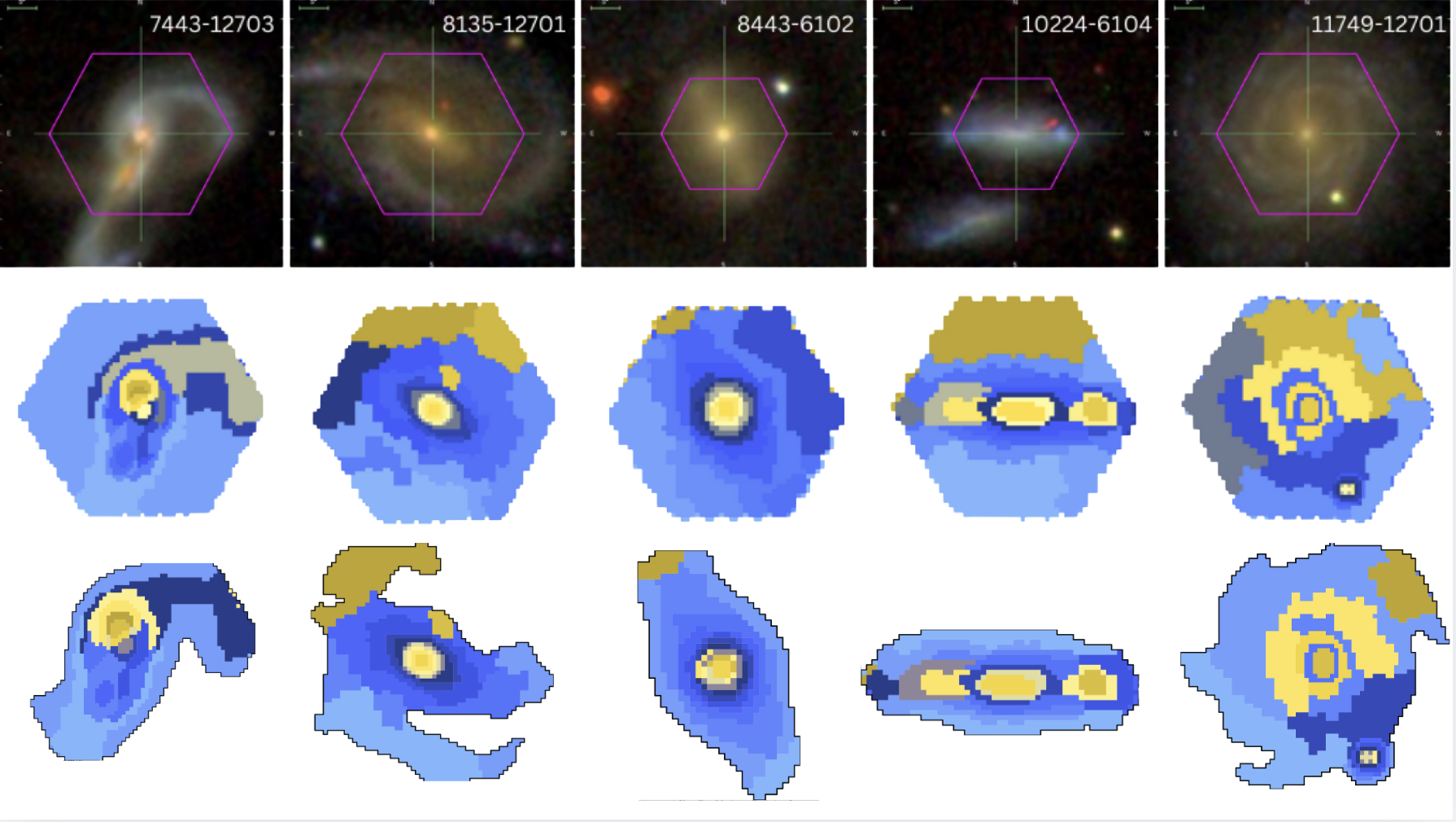

Sagui Comparison Mosaic

Sagui comparison mosaic

Both mosaics are displayed with the same fixed size to make the visual comparison easier.

What’s New In 0.3.0

segment() now handles missing spectral channels by default.
segment_large() adds the calibrated kNN-restricted sparse-Ward backend for large cubes.
estimate_segment_memory() reports the exact Ward distance-vector RAM lower bound before you allocate it.
both segmentation backends can optionally use a Sagui-style starlet mask from the white-light image.
summarize_cluster_spectra() supports median, summed, and weighted spectra.
choose_ncomp_by_snr() selects Ncomp from a variance-aware SNR cut.
torch is now optional.

Installation

install.packages("remotes")
remotes::install_github("RafaelSdeSouza/capivara")
library(capivara)

Optional GPU acceleration:

install.packages("torch")
torch::install_torch()

Usage

Basic Segmentation

cube <- FITSio::readFITS("manga-8140-12703-LOGCUBE.fits")
res <- segment(cube, Ncomp = 20)
plot_cluster(res)

Missing-data-safe Segmentation

segment() now handles missing spectral channels directly.

Large-cube Segmentation

estimate_segment_memory(cube, knn_k = 30)
res_large <- segment_large(cube, Ncomp = 20, knn_k = 40)

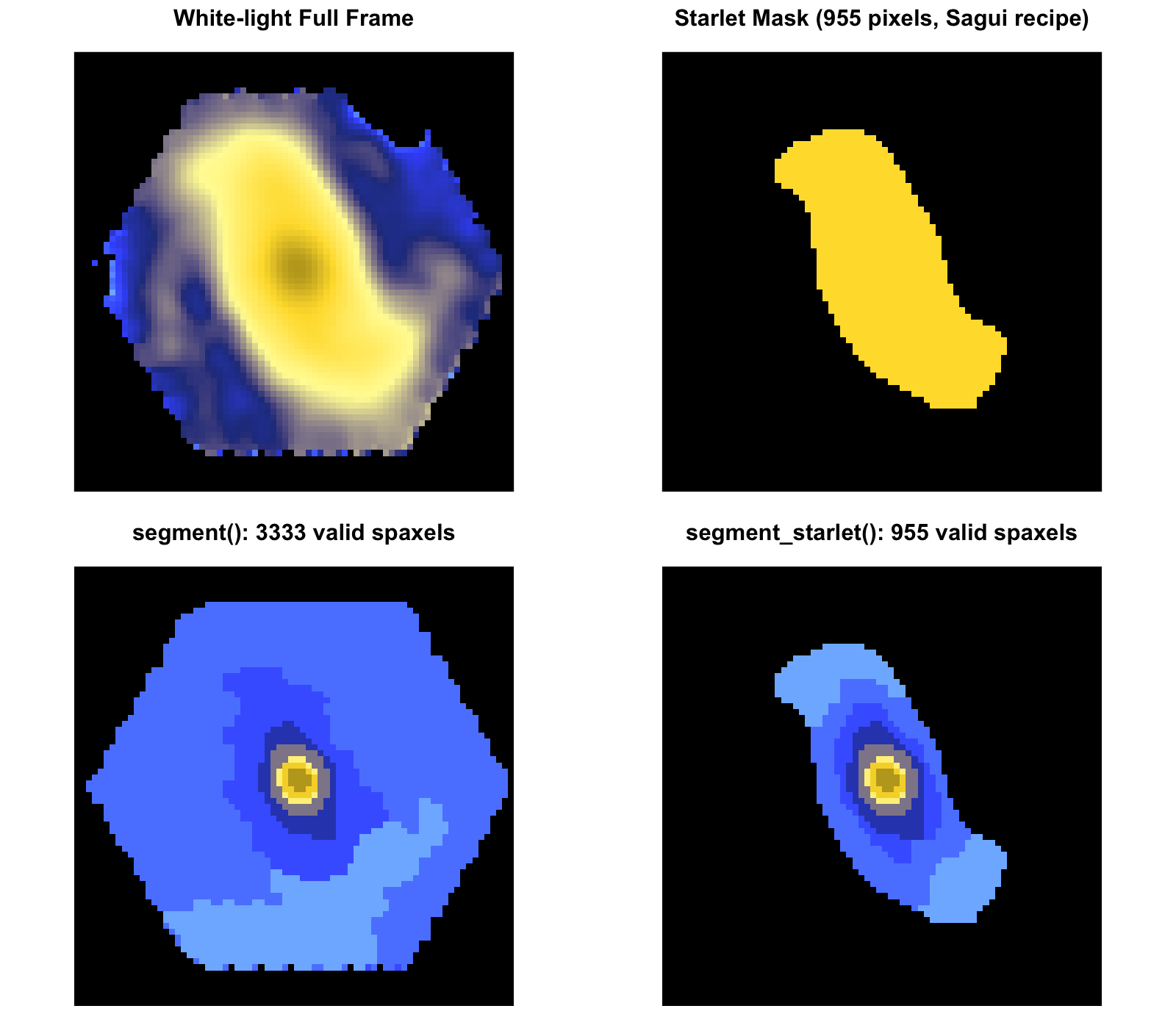

Sagui-style Starlet Segmentation

res_star <- segment(
  cube,
  Ncomp = 20,
  use_starlet_mask = TRUE,
  starlet_J = 5,
  starlet_scales = 2:5,
  include_coarse = FALSE,
  denoise_k = 0,
  positive_only = TRUE,
  mask_mode = "na"
)

plot_cluster(res_star)

res_star_large <- segment_large(
  cube,
  Ncomp = 20,
  use_starlet_mask = TRUE,
  knn_k = 40
)

Reproducible MaNGA Examples

These panels were generated with the current public API on full MaNGA cubes, so the website examples reflect real package outputs rather than placeholder figures.

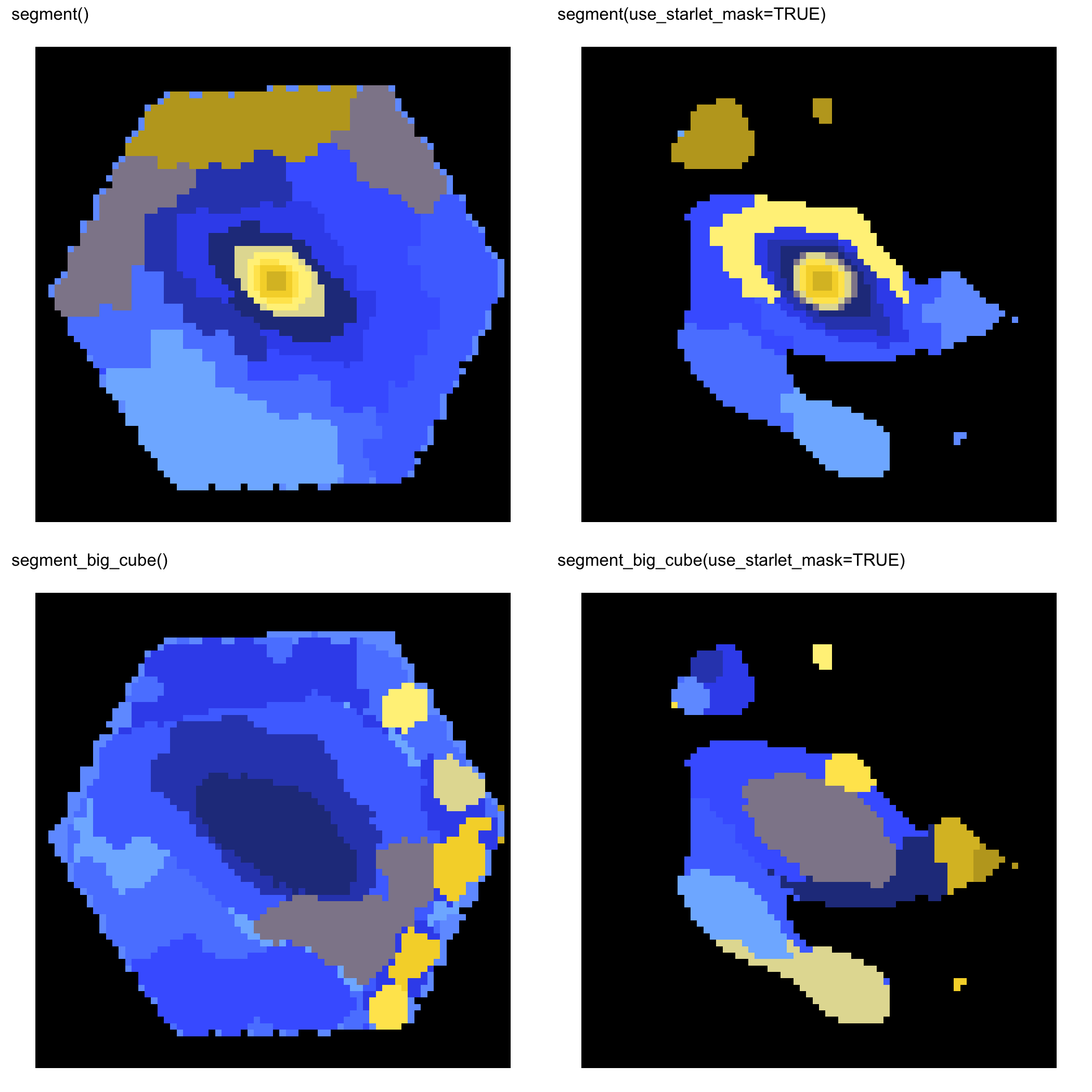

MaNGA 8135-12701

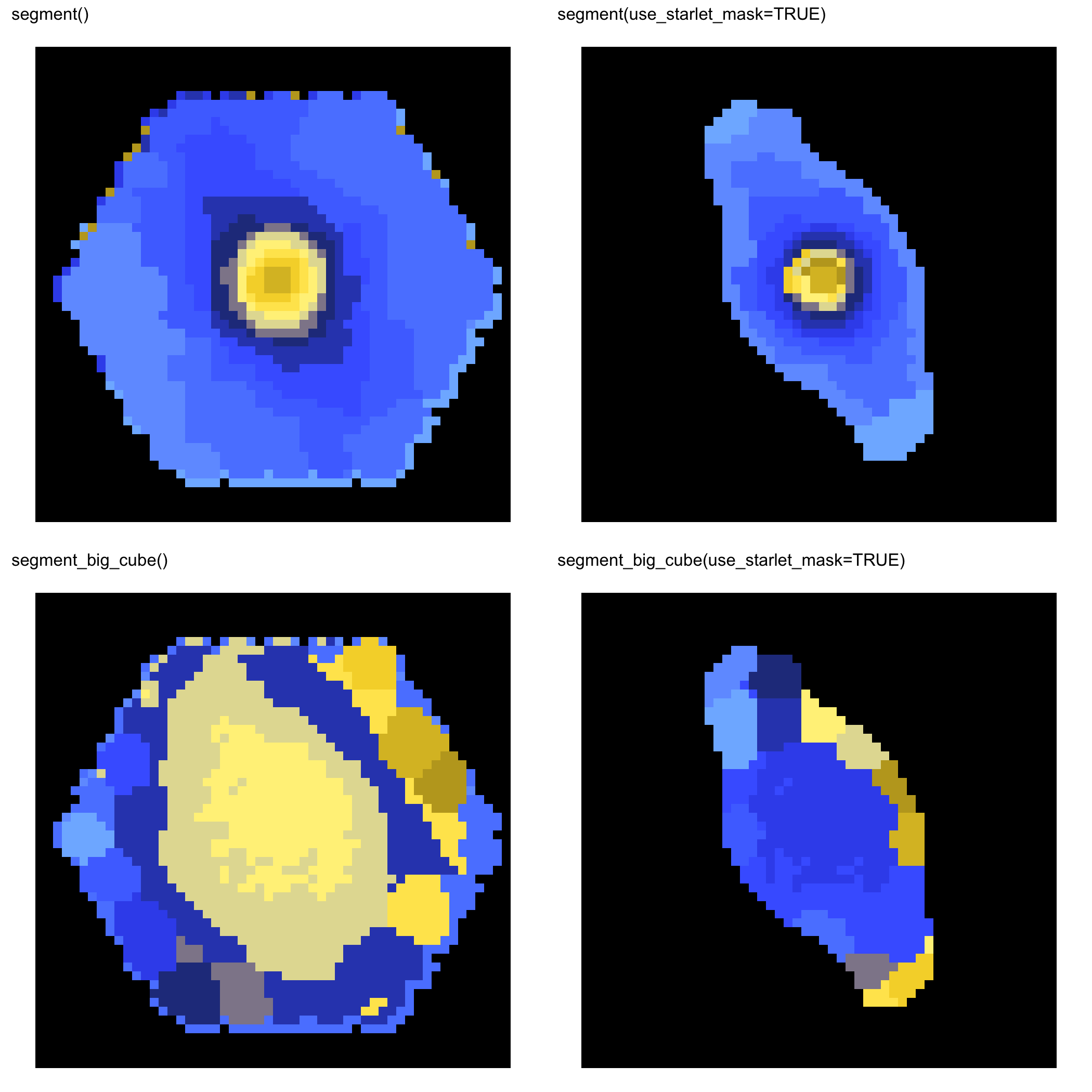

MaNGA 8443-6102

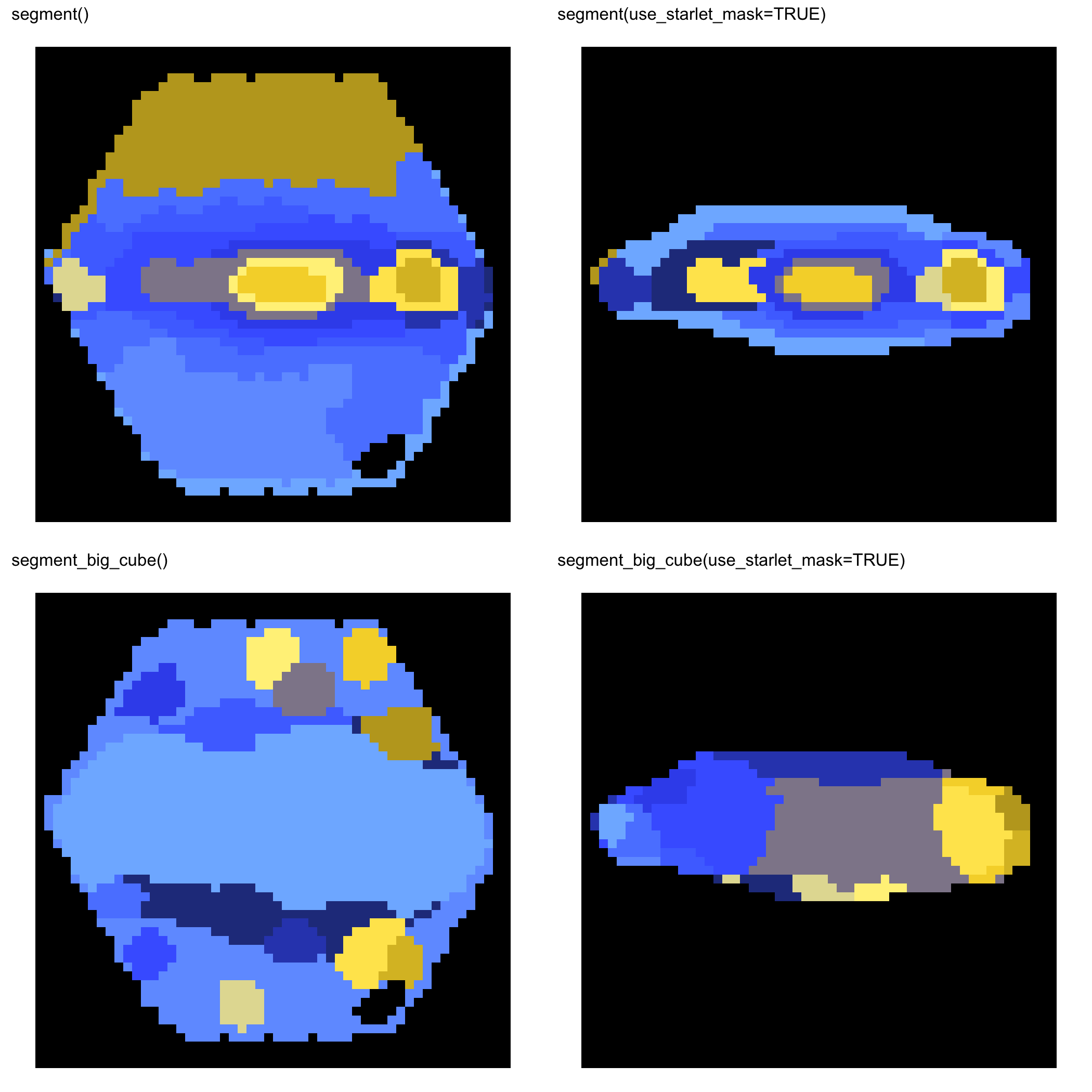

MaNGA 10224-6104

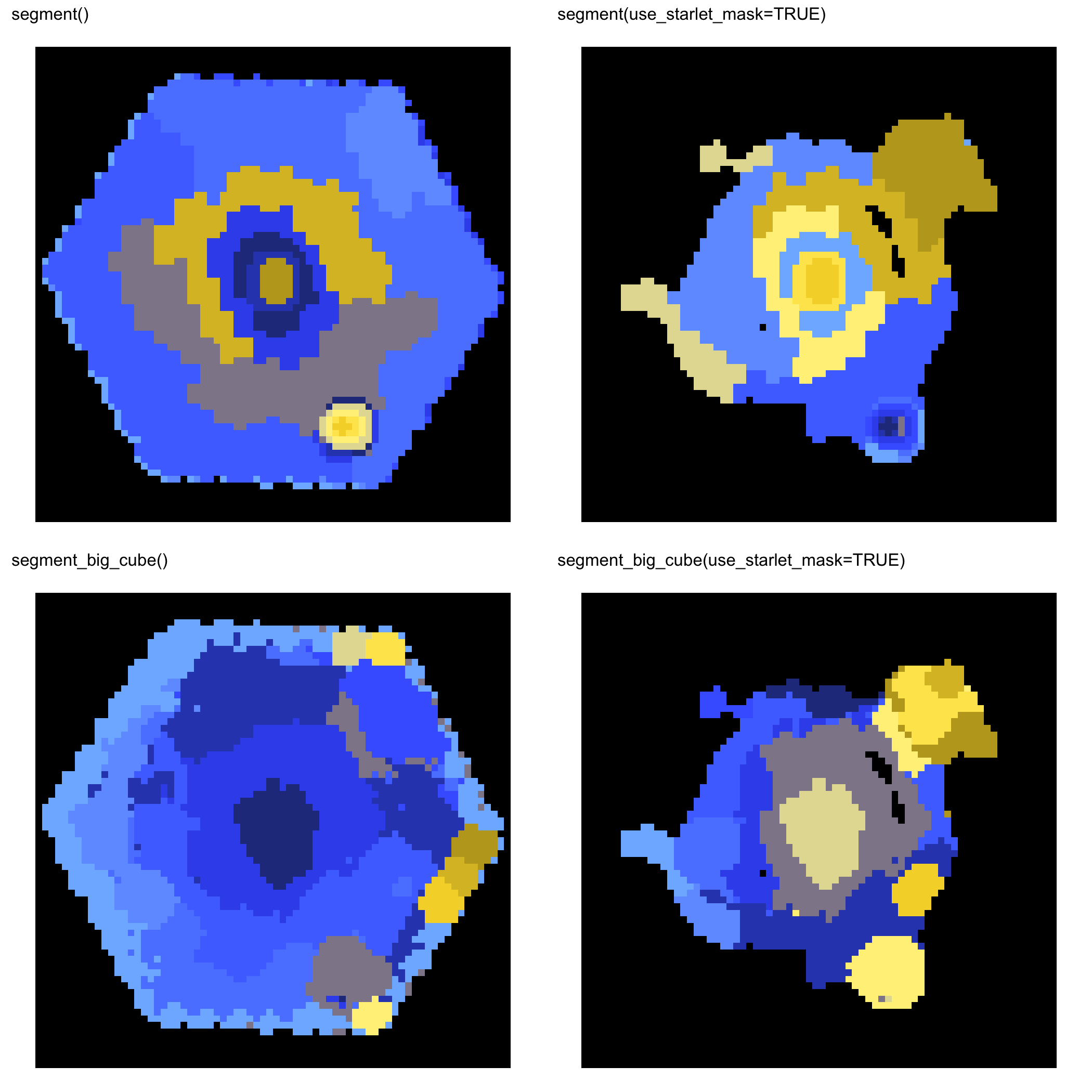

MaNGA 11749-12701

Variance-aware Summaries

var_cube <- FITSio::readFITS("manga-8140-12703-VARCUBE.fits")

choice <- choose_ncomp_by_snr(
  cube,
  var_cube = var_cube$imDat,
  k_values = 4:20,
  target_snr = 20
)

res <- segment(cube, Ncomp = choice$Ncomp)
spec_summary <- summarize_cluster_spectra(res, var_cube = var_cube$imDat)

Reconstructed Cubes

rep_cube <- reconstruct_cluster_cube(res_star, template = "median")
fit_cube <- reconstruct_flux_preserving_cube(res_star)

Attribution

If you use the Capivara code in your research, please cite the Capivara paper.

Dependencies

torch: Optional GPU-accelerated tensor computations.
ggplot2: Visualization.
FITSio: Reading and handling FITS files.
reshape2: Data manipulation.

References

MaNGA Survey: Bundy, Kevin, et al. “Overview of the SDSS-IV MaNGA Survey: Mapping Nearby Galaxies at Apache Point Observatory.” The Astrophysical Journal 798.1 (2015): 7. DOI: 10.1088/0004-637X/798/1/7
Capivara Code: RafaelSdeSouza/capivara
Capivara Methodology: Souza, R. S. de, et al. (2025). CAPIVARA: A spectral-based segmentation method for IFU data cubes. Monthly Notices of the Royal Astronomical Society, 539(4), 3166–3179. https://doi.org/10.1093/mnras/staf688
Torch in R: Paszke, Adam, et al. “PyTorch: An Imperative Style, High-Performance Deep Learning Library.” Advances in Neural Information Processing Systems 2019.
